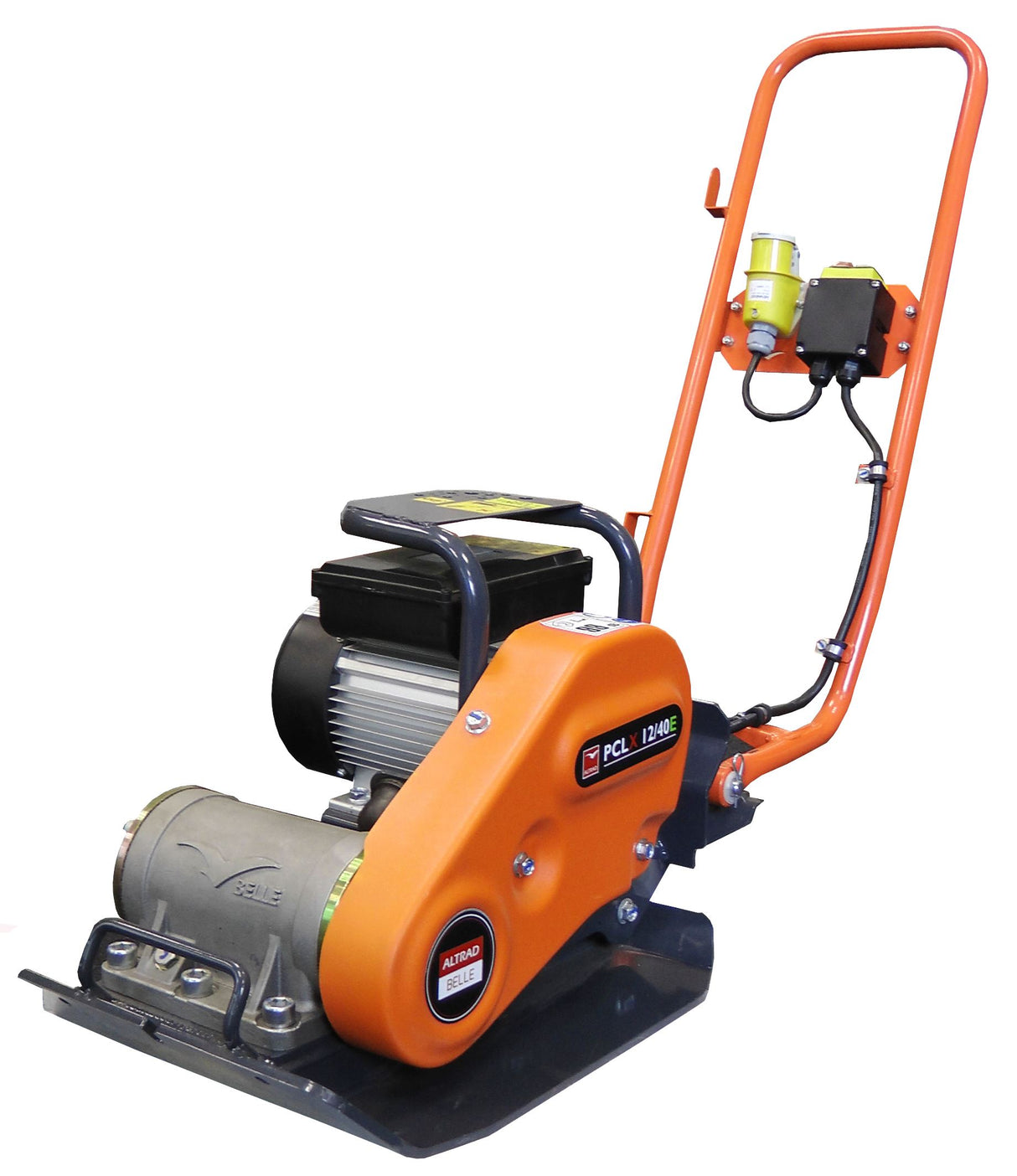

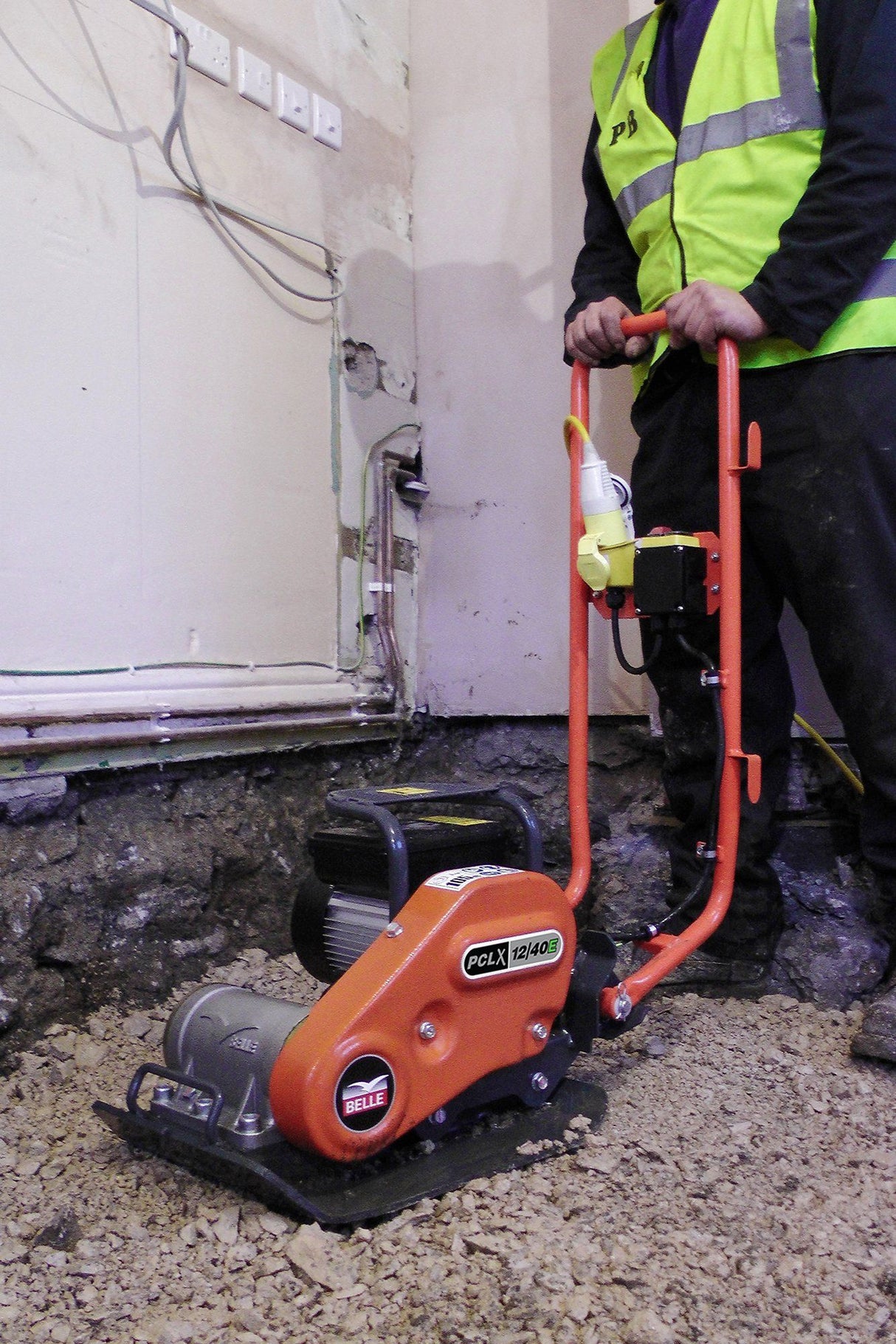

A lightweight professional compaction plate with high performance and travel speed from the 12kN vibration unit. Designed with an environmentally friendly Electric Motor for use indoors and poorly ventilated areas.
- High performance 12kN vibration unit for excellent travel speed.
- High Compaction Force reduces operating times.
- Environmentally friendly, 1.5kW zero emission Electric Motor for use indoors & in poorly ventilated areas.
- Low HAV design allows longer, safe usage times.
- Efficient Electric Motor is ideal for night time and urban usage.
- Centrifugal Clutch for soft start & reduced current surge.
- Professional 16amp power inlets for effective cable management.
- Sealed oil-filled vibrator with top quality bearings for reliability and durability.
- Front & rear manual handling points for easy 2-man lift.
- Removable, ultra low folding operator's handle for ease of transportation and storage.
- 8mm thick long life base plate for optimum compaction and reliability.
- Engineered to be robust and durable for rental and heavy contractor use.
- No fuel or engine maintenance and higher return on investment.
- Class 1 Earthed Appliance.
- Integrated Motor protection guard.
Specification:
PCLX 12/40E 110V 50Hz Electric
Max power (Hp/kW) - 2.0 - 1.5
Minimum transformer size (kVA) - 3.3
Plate size WxL (mm) - 380 x 364
Static pressure (kg/m2) - 388
Max gradient (°) - 20
Centrifugal force (kN) - 12
Travel speed (m/min) - 24
Vibration (m/sec2) - 3.97
Weight (kg) - 50
PCLX 12/40E 230V 50Hz Electric
Max power (Hp/kW) - 2.0 - 1.5
Plate size WxL (mm) - 380 x 364
Static pressure (kg/m2) - 388
Max gradient (°) - 20
Centrifugal force (kN) - 12
Travel speed (m/min) - 24
Vibration (m/sec2) - 3.97
Weight (kg) - 50
